Sand Casting in Cars: How This Old Technique Shapes Modern Automotive Parts
When we talk about modern cars, we usually think about things like turbo engines, EV batteries, infotainment screens, and ADAS features. But behind all the innovation, there is an old manufacturing method that still plays a big role in how vehicles are made, sand casting.
This process may sound simple, yet it helps create some of the strongest and most complex metal parts inside your car. From the engine block to the transmission housing, many critical components come to life through moulds made of sand.
In this blog, Drive UAE will break down sand casting in simple words. You will learn what it is, why car makers still use it, what parts are made with it, and how it impacts everyday drivers. The goal is to help you understand the hidden world of automotive manufacturing without any technical overload.
What Is Sand Casting?

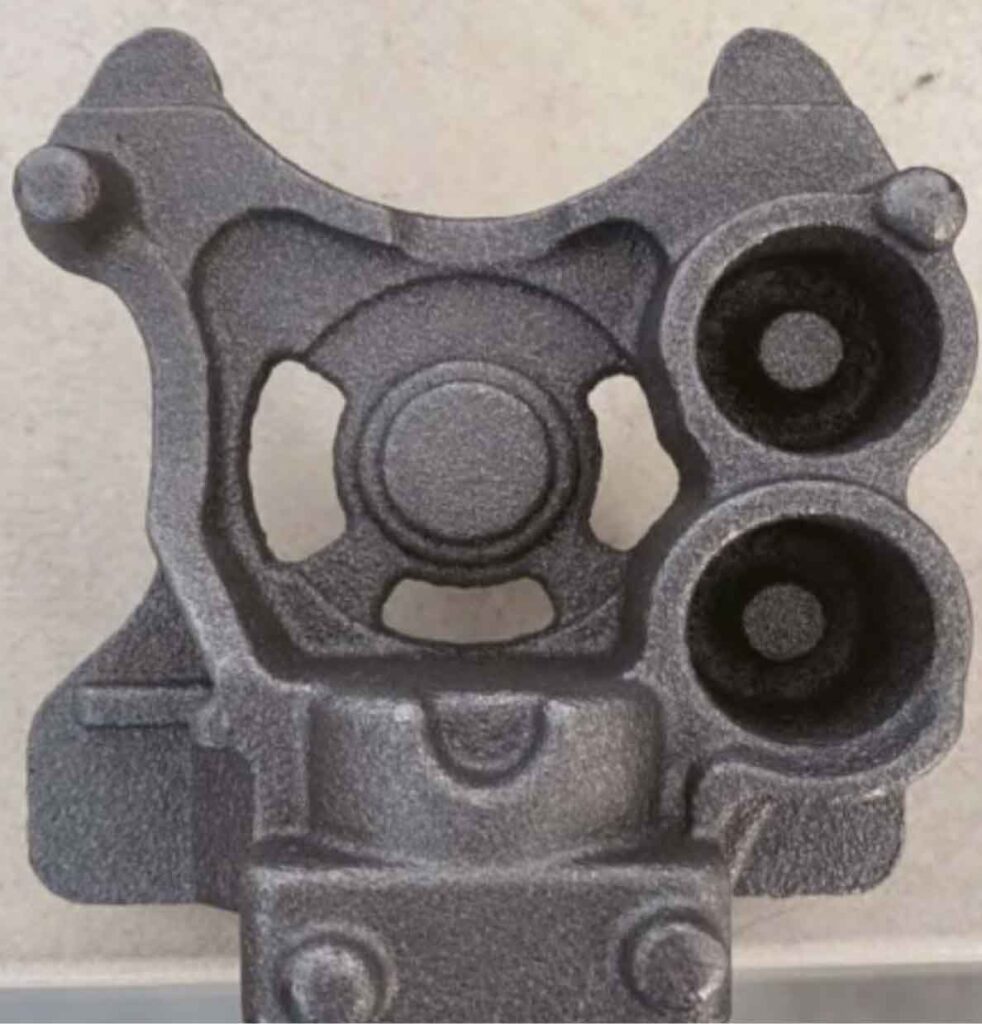

Sand casting is a process where molten metal is poured into a sand mould. When the metal cools and becomes solid, the sand is removed to reveal a finished metal part.
Think of it like pouring melted wax into a mould, letting it harden, then peeling the mould away, just with much higher heat and far stronger materials.
Why sand?
Because sand can hold shape well under high temperatures, it is low-cost, and it is easy to form into any shape a part needs. Every mould can be made from scratch, which gives manufacturers the freedom to design complex parts without expensive tools.
How it differs from die casting:
- Sand casting uses a temporary mould
- Die casting uses a permanent metal mould
- Sand casting works well for larger parts
- Die casting is better for lighter and thinner pieces
This simple method has been around for thousands of years, yet it still supports today’s advanced car engines and drivetrains.
Why Automakers Still Use Sand Casting
You might wonder: with modern machinery and 3D printing, why do car companies still use sand casting? The answer is simple, it works well, and it saves money.
1. It allows complex shapes
Engine blocks, cylinder heads, and exhaust parts have detailed internal pathways. Sand moulds can capture these shapes with accuracy.
2. It keeps production cost lower
Compared to permanent moulds, sand moulds require less investment. This is helpful when manufacturers need parts in low or medium volumes.
3. It is good for prototypes
When a new engine or gearbox is in development, automakers need sample parts quickly. Sand casting can create these samples without waiting for permanent tooling.
4. It supports different metals
Car manufacturers use sand casting for:
- Aluminium
- Cast iron
- Magnesium alloys
This flexibility helps meet different performance and weight requirements.
Car Parts Made Through Sand Casting
Many people do not realize how many essential car components come from this process. Sand casting helps build parts that must endure high pressure, heat, and stress.
Here are the most common examples:
1. Engine Blocks
The heart of combustion engines often starts with sand casting because of the complex water channels and strength needed.
2. Cylinder Heads
These sit above the cylinders and include air and fuel pathways. Sand moulds help shape these detailed areas.
3. Intake and Exhaust Manifolds
These parts guide air into the engine and push gases out. Their long, curved shapes suit sand casting well.

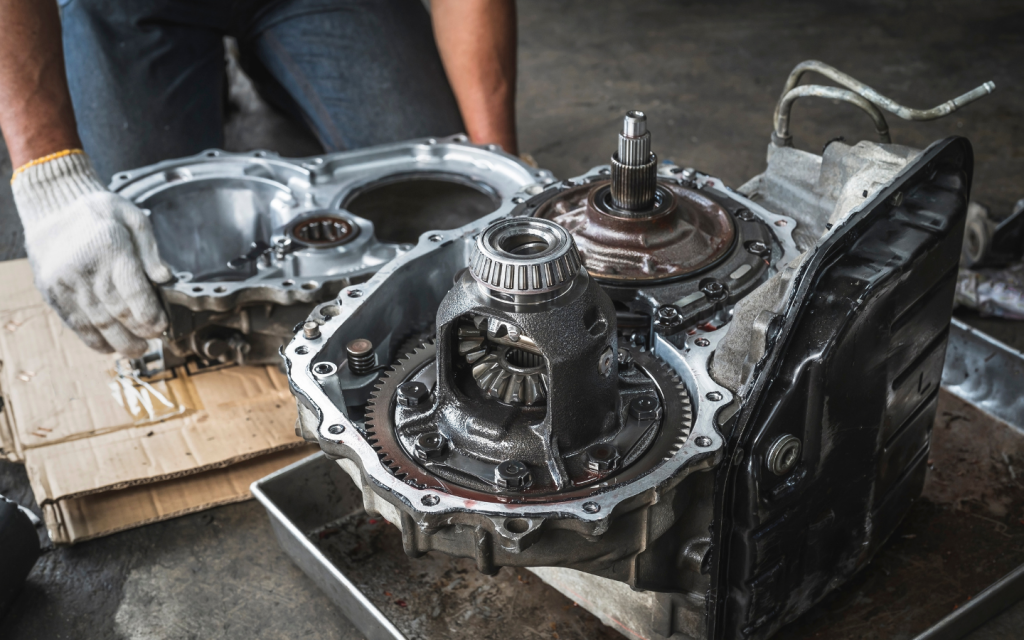

4. Transmission Housings
These protect gears and transmission parts. Sand casting delivers thick, strong walls needed for durability.

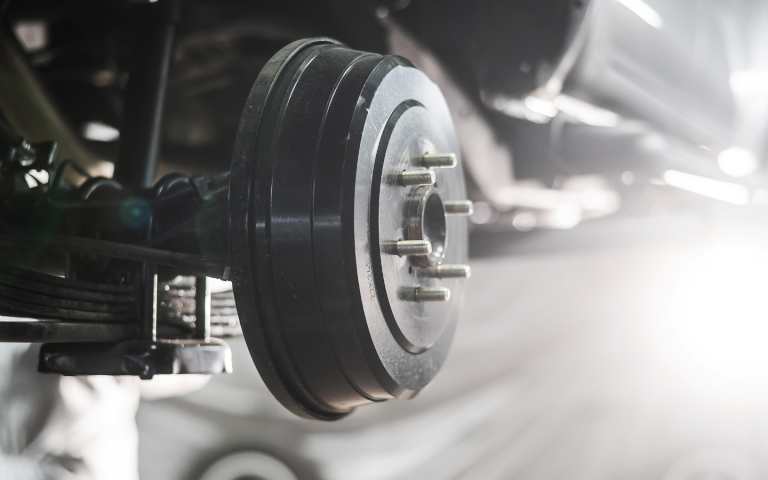

5. Brake and Suspension Components
Some heavy-duty suspension arms, brackets, and brake parts come from sand casting due to their strength and size.
6. Custom and Performance Parts
Car tuners and racing teams often use sand casting for one-off or limited-run components.
This method stands strong in both mass production and high-performance automotive builds.
Step-by-Step Process of Sand Casting in the Automotive Industry
Automotive factories use a precise and systematic casting process. Here is a simple breakdown:
1. Pattern Creation
A pattern is the shape of the final part. It can be made from wood, metal, or plastic.
2. Mould Preparation
Sand is packed around the pattern to make a hollow cavity. The sand is mixed with binding agents so it holds shape.
3. Metal Melting and Pouring
Aluminium, cast iron, or magnesium is heated until molten. The metal is then poured slowly into the mould.
4. Cooling and Solidification
The metal needs time to cool and harden. Large parts take longer.
5. Removing the Sand Mould
The mould is broken to release the metal part, this is why it’s called a non-permanent mould process.

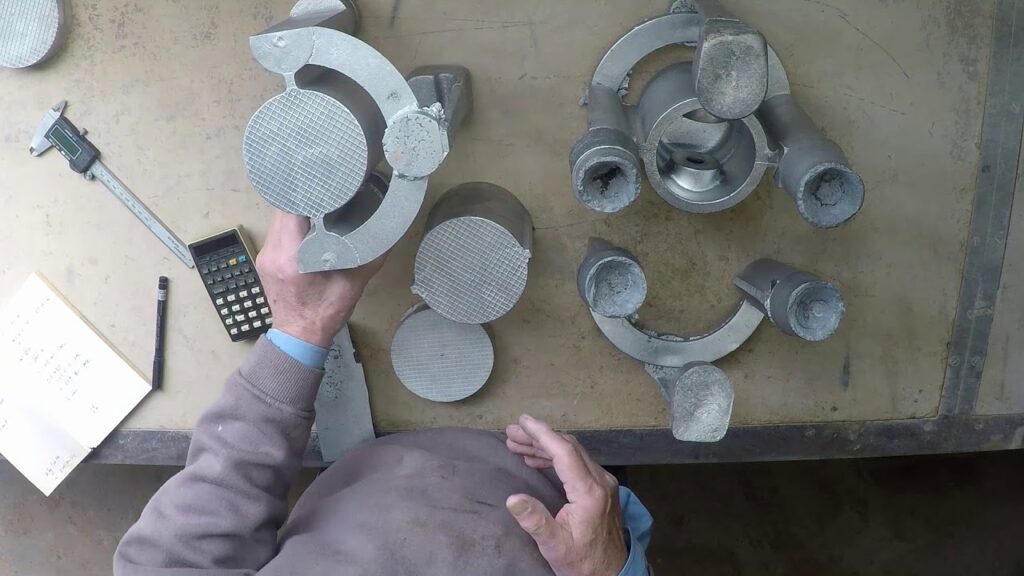

6. Cleaning and Finishing
Extra metal pieces, rough edges, and surface sand are removed. The part may undergo machining for precision.
7. Quality Checking
Automakers use tools like X-rays, pressure tests, and visual inspections to ensure the part meets safety and performance standards.
This process ensures each component is strong, stable, and ready for life inside a car.
Benefits of Sand Casting for Car Makers
Sand casting offers several advantages that keep it relevant even today:
1. Low Production Cost
Moulds are inexpensive and easy to create, which reduces overall manufacturing cost.
2. High Strength Output
Sand-cast metals handle heat and stress well, perfect for engines and drivetrains.
3. Good for Heavy and Large Parts
Engine blocks and housings can be quite big. Sand moulds can handle this scale.
4. Fast Design Changes
If engineers want to adjust a design, they only need to change the pattern, not the entire tool.
5. Works for Both Simple and Complicated Shapes
This makes it ideal for cars that combine basic housings with detailed internal channels.
Limitations of Sand Casting
No manufacturing process is perfect. Here are the main drawbacks:
1. Lower Surface Finish
Parts might look rough and need extra machining.
2. Less Dimensional Accuracy
Some parts need tight measurements, so they require post-processing.
3. Longer Cooling Time
Large metal parts take time to cool, which slows production.
4. Not Suitable for Very Thin Sections
Thin parts can weaken or crack in sand moulds.
Even with these limits, sand casting remains practical for the parts it suits best.
Why Sand Casting Matters to Drivers and Buyers
You might think casting only matters to manufacturers, but it also affects everyday drivers.
1. Durability
Strong sand-cast parts help engines last longer and handle heat better.
2. Repair Costs
Good casting reduces the risk of cracks or leaks that lead to expensive repairs.
3. Used Car Shopping
Knowing how parts are made helps buyers understand which components tend to last and which ones need close inspection.
4. Engine Reliability
Strong cast surfaces reduce overheating and prevent oil and coolant leaks.
The Future of Sand Casting in Cars
The method is evolving with new technologies:
1. EV Components
Motor housings and battery casings can be sand cast for strength.
2. Lighter Materials
Aluminium and magnesium alloys help automakers reduce weight.
3. Automation
Robotic machines prepare moulds faster and more accurately.
4. AI Quality Control
AI systems detect defects before parts reach assembly lines.
Even as the industry shifts to electric cars, sand casting remains an important part of manufacturing.
Final Thoughts
Sand casting may be an old technique, but it continues to shape the future of cars. It is cost-effective, flexible, and capable of creating some of the most important parts under the hood. Whether you drive a daily commuter or a high-performance model, many of the metal components keeping your car running smoothly were likely shaped in a simple sand mould.
Understanding this process gives you a new appreciation for the engineering behind every journey.
